Modulus of Elasticity

Imagine stretching a rubber band; you will pull it gently, and it stretches. When you release it, the rubber band comes back to its original shape and length. This simple action is an important concept in physics called elasticity. The measure of how resistant a material is to such deformation is called its modulus of elasticity.

Definition

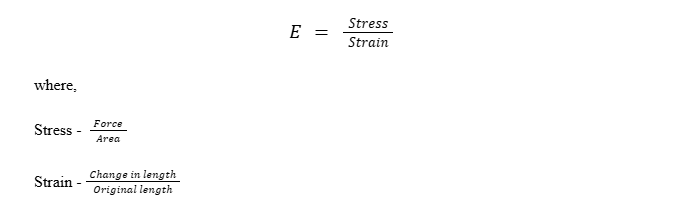

The modulus of elasticity is also called the elastic modulus or Young’s Modulus. It is the ratio of stress to strain within the elastic limit of a material:

Formula

In the SI system, the modulus of elasticity is measured in pascals (Pa).

Types of Modulus of Elasticity

The types are as follows

Young’s Modulus (E)

It is the ratio of tensile or compressive stress and strain. Example: Stretching or compressing a wire or rod.

Formula:

Bulk Modulus (K)

It is the ratio of pressure and volumetric strain. It is applied when a material is subjected to uniform pressure from all sides. Example: Compressing a block of material under water.

Formula:

A negative sign represents a decrease in volume.

Shear Modulus (G)

It is the ratio of shear stress and strain. It is applied when layers of a material slide past each other.

Example: Twisting a metal rod.

Formula:

The relation between the three:

E = 2G(1 + ν)

where,

ν = Poisson’s ratio

Elastic Limit and Hooke’s Law

The modulus of elasticity applies only within the elastic limit of the material. Beyond this point, the material undergoes plastic deformation and will not return to its original shape. This is due to Hooke’s Law.

Stress ∝ Strain

Graph Representation

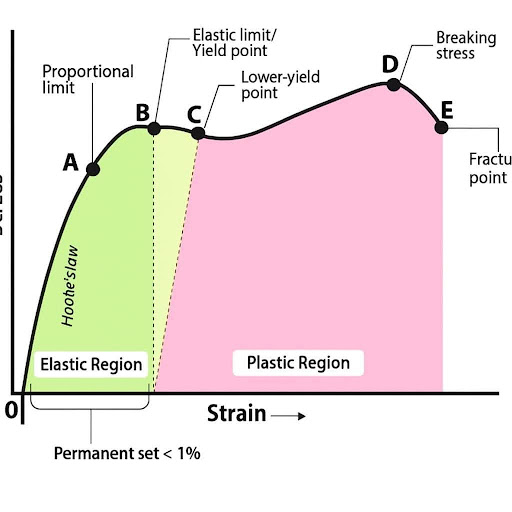

Stress-Strain Graph

From the graph above, we can know that from point O to B, the region is elastic. After this region, the plastic deformation starts. Point A in the curve shows the limit of proportionality. From this curve, we can calculate that the value of the modulus of elasticity (E) is equal to the slope of the stress-strain curve up to A.

Factors Affecting the Modulus of Elasticity

Material Composition – Metals have high moduli, and polymers have lower values.
Temperature – Increasing temperature generally lowers the modulus as the material becomes softer.
Impurities – The presence of impurities can change stiffness.
Crystal Structure – The atomic arrangement affects how atoms move under force.

Applications

Construction and Civil Engineering – Bridges, flyovers, and skyscrapers use steel due to its high modulus. It prevents bending or stretching under heavy loads.
Automobile and Aerospace Industry – Aircraft wings should be strong yet slightly flexible to endure air pressure; materials with an optimal modulus are used for safety and performance. Car chassis use steel or carbon composites to remain rigid during impacts.
Sports Equipment – Tennis rackets, cricket bats, and golf clubs are designed with materials that have a suitable modulus to absorb shock and improve control. Bicycle frames use alloys with a balance of stiffness and light weight.
Medical Field – Artificial bones, dental implants, and prosthetics are made from materials whose modulus is similar to that of human bone to avoid stress imbalances.
Everyday Items – Springs in pens, watches, and toys use the concept of steel’s high modulus to return to their original shape after compression.

Summing Up

The modulus of elasticity measures a material’s stiffness, defined as stress to strain within the elastic limit. It includes Young’s, bulk, and shear moduli, according to Hooke’s Law. Factors like material type, temperature, and impurities affect it. Applications include construction, aerospace, sports equipment, medical implants, and everyday items like springs, ensuring strength, flexibility, and durability.
